Analyzing Cytokines Inside Cells

A comprehensive guide to Intracellular Cytokine Staining (ICS), protein transport inhibitors, and single-cell immune profiling.

Intracellular Cytokine Staining (ICS) is a versatile and powerful technique widely employed in both basic research and preclinical studies to gain comprehensive insights into cellular function and immune responses.

This method facilitates the simultaneous assessment of surface markers and intracellular cytokines, providing a multifaceted view of cellular behaviour. Because cytokines are naturally secreted out of the cell after production, researchers must use highly specific protein transport inhibitors during the stimulation phase to "trap" the cytokines inside the cell for detection.

Trapping Cytokines: Monensin vs. Brefeldin A

Monensin and Brefeldin A are the two primary inhibitors used in ICS. Monensin disrupts Golgi acidification, causing cytokines to accumulate in the Golgi (suited for long-term experiments). Brefeldin A blocks protein transport from the endoplasmic reticulum (ER) to the Golgi, leading to cytokine accumulation in the ER (ideal for short-term studies).

1. Why Measure Intracellular Cytokines?

Surface Marker & Cytokine Measurement

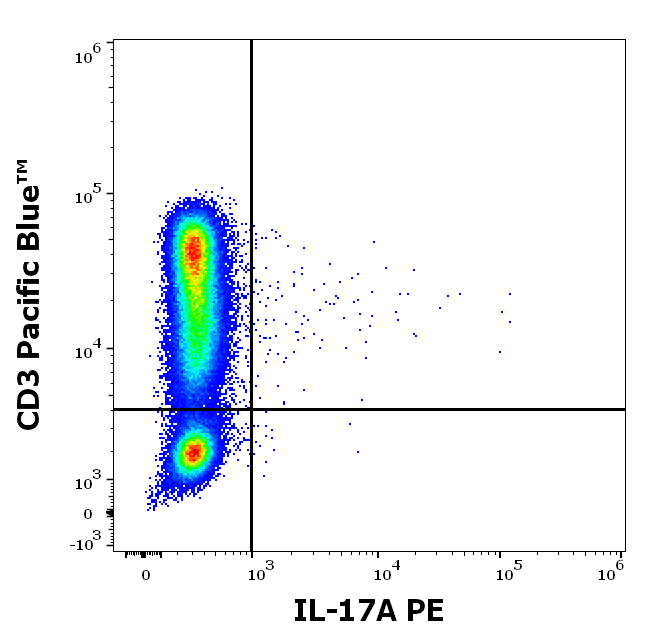

ICS allows researchers to measure cell surface markers (such as CD4 or CD8), which are crucial for identifying different T cell subsets, alongside intracellular cytokines (like IL-2 or IL-17). This directly correlates specific immune subsets to their functional outputs.

Functional Analysis

By measuring cytokines within cells, researchers can assess the acute activation status of immune cells, map cellular signalling pathways, and evaluate the efficacy of immunomodulatory therapeutic interventions.

Characterising Cell Phenotypes

The dual capability of ICS enables the granular identification of specific cell populations that produce particular cytokines. For example, it can definitively reveal which specific subsets of T cells are responsible for secreting cytokines associated with an autoimmune response.

2. How Does Flow Cytometry Fit In?

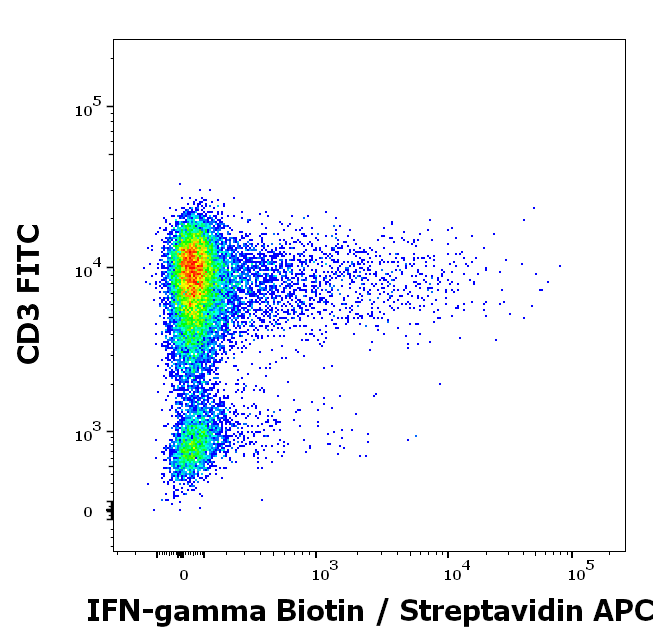

Flow Cytometry is a powerful analytical technology that enables the simultaneous measurement of multiple characteristics of cells as they move in a fluid stream through a laser beam.

It allows for the concurrent assessment of multiple parameters, including cytokine production, cell size, granularity, and surface marker expression.
Single-Cell Resolution: This technology provides data at the single-cell level, allowing for a highly granular view of cellular responses and a deeper understanding of heterogeneous cell populations.
It facilitates the precise quantification of cytokine levels, providing accurate and reproducible data through the use of fluorochrome-conjugated antibodies that specifically bind to target cytokines.

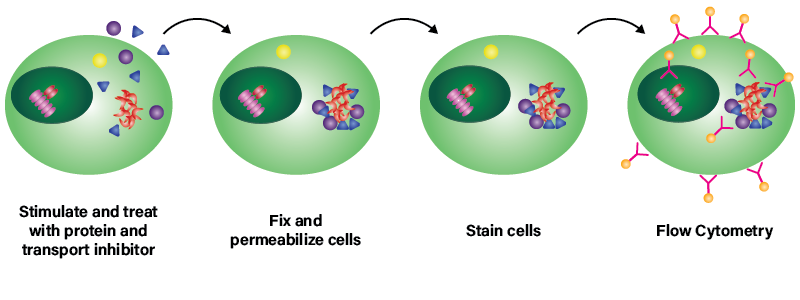

Intracellular cytokine detection with flow cytometry workflow diagram

3. Enhance your Intracellular Detection with Biorbyt

Different cytokines traffic through the cell differently, meaning the choice between Monensin and Brefeldin A is critical depending on your target. Here are some of the most commonly studied cytokines and their recommended transport inhibitors:

Cytokine Target	Recommended Protein Transport Inhibitor
IL-1α	Brefeldin A, Monensin
IL-2	Brefeldin A
IL-4	Brefeldin A
IL-5	Brefeldin A, Monensin
IL-6	Brefeldin A, Monensin
IL-9	Brefeldin A
IL-10	Monensin
IL-12	Brefeldin A, Monensin
IL-17A	Brefeldin A
IL-21	Brefeldin A
IL-22	Brefeldin A
IFN-γ	Brefeldin A
TNF-α	Brefeldin A
TNF-β	Monensin
GM-CSF	Brefeldin A
